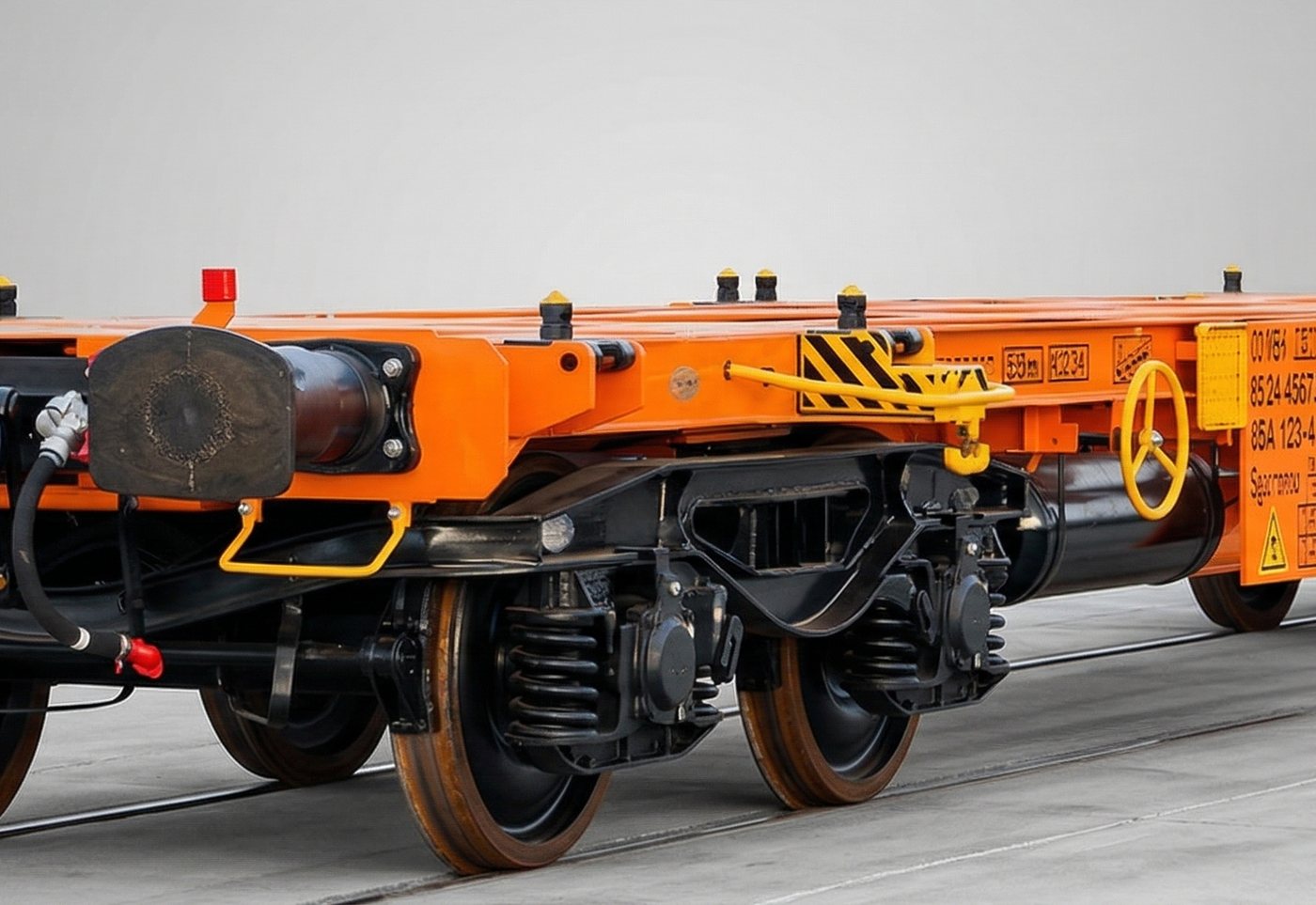

Intermodal · 40 ft

Sgmmns(s) 40’

For transporting 20’ and 40’ containers and swap bodies.

A versatile flat wagon engineered for maximum flexibility in 20’ and 40’ container configurations.

40 ft

22.5 t

UIC

Technical Specifications

Type

Sgmmns(s) 40’

Compliance

TSI WAG · TSI NOI · UIC · EN · RIV

Gauge

TSI G1

Track gauge

1,435 mm

Tare weight

16.05 t

Max. payload

73.95 t

Max. total weight

90 t

Axle load

22.5 t

Length over buffers

14,120 mm

Distance between bogie pivots

9,080 mm

Max. speed

120 km/h at 20 t axle load · 100 km/h at 22.5 t

Container compatibility

2×20’ · 1×30’ · 1×40’ · swap bodies

Min. curve radius

75 m

Bogie

Y25Ls(s)1-K

Bogie wheelbase

1,800 mm

Wheelsets

BA004 monobloc · 25 t

Wheel diameter

920 mm

Brake

KE-GP-A(K) 2×10″ · K blocks

Buffers

30 kJ · 105 mm stroke

Buffer height

1,025 ±10 mm

Semi-automatic coupling

Compatible

Overview

The Sgmmns(s) 40’ is a intermodal container wagon designed and built by Erciyas Rail in Türkiye. Key figures: maximum payload 73.95 t, tare weight 16.05 t, axle load 22.5 t, length over buffers 14,120 mm, maximum speed 120 km/h at 20 t axle load · 100 km/h at 22.5 t and wheel diameter 920 mm. It runs on Y25Ls(s)1-K bogies. Compliance: TSI WAG, TSI NOI, UIC, EN, RIV; loading gauge TSI G1.

Standards and approvals

TSI WAGEU Technical Specification for Interoperability for freight wagons, Commission Regulation (EU) No 321/2013.

TSI NOIEU noise TSI, Commission Regulation (EU) No 1304/2014; since 8 December 2024 non-compliant wagons may not run on "quieter routes".

UICTechnical leaflets of the International Union of Railways (UIC).

ENApplicable European (EN) standards for railway vehicles.

RIVMarking in line with the RIV rules for international wagon exchange, which today are carried forward by the GCU.

Frequently asked questions

What is the Sgmmns(s) 40’ used for?

For transporting 20’ and 40’ containers and swap bodies.

What is the payload of the Sgmmns(s) 40’?

Capacity figures: maximum payload 73.95 t, tare weight 16.05 t and axle load 22.5 t.

Which bogie does the Sgmmns(s) 40’ use?

Y25Ls(s)1-K bogies, 920 mm wheel diameter; brake system KE-GP-A(K) 2×10″ · K blocks.

Which standards does the Sgmmns(s) 40’ comply with?

TSI WAG, TSI NOI, UIC, EN, RIV. Type approval and any additional requirements of the target network are confirmed at quotation stage.

How do I get a quote for the Sgmmns(s) 40’?

The 7-step quote configurator on this site collects the model, quantity and delivery date; our engineering team then tailors the design to your project. You can also write directly to info@erciyasrail.com.

From the field

Real photographs from our production line and from vehicles in service.
