Tank · Crude

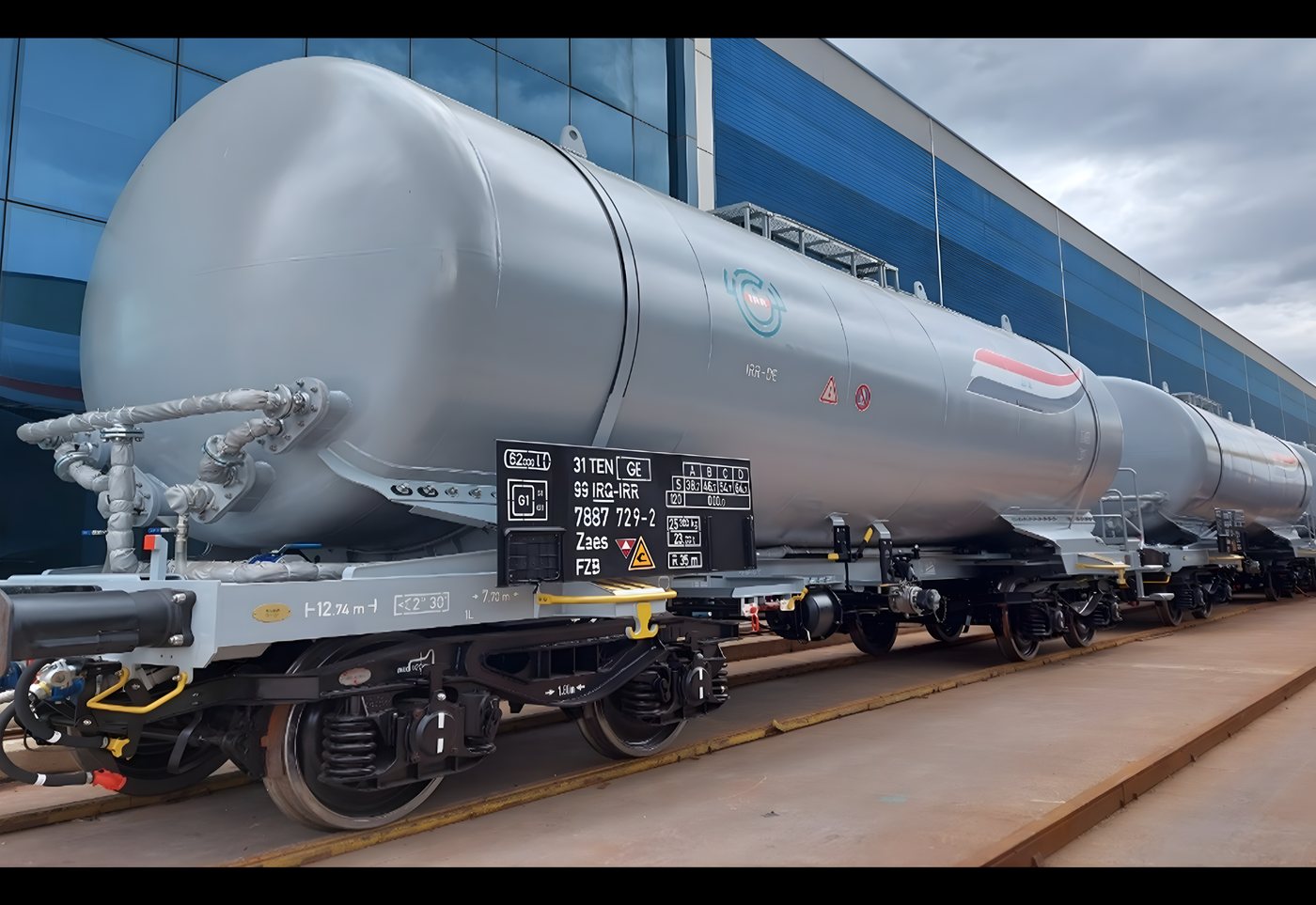

Zaes 62 m³

Designed for transporting crude oil and heavy petroleum products.

Its heating system maintains fluid viscosity, ensuring seamless transport and efficient discharge of crude oil and heavy petroleum products.

62 m³

S355 JR

20 t

Datasheet (PDF) ↓

Technical Specifications

Type

Zaes

Compliance

RID · UIC · EN · GCU · TSI

Gauge

GT-UIC 505-1

Track gauge

1,435 mm

Capacity

Min. 62 m³

Permissible gross weight

80 t

Axle load

20 t

Max. speed (empty / loaded)

120 / 100 km/h

Tank code

L4BH

Tank material

Carbon steel S355 JR

Tank working temperature

-20°C / +165°C

Design pressure

10 bar

Test pressure

4 bar

Max. working pressure

3 bar

Tank slope

1°12′

Tank outside diameter

2,800 mm

Min. curve radius (shunting / line)

80 / 140 m

Bogie

Y25Ls(s)1-K

Bogie wheelbase

1,800 mm

Brake

Knorr KE-GP-A 16″ BGS

Coupler

CA-3 Willison automatic

Buffers

Cat A · 105 mm stroke

Overview

The Zaes 62 m³ is a tank wagon designed and built by Erciyas Rail in Türkiye. Key figures: capacity min. 62 m³, axle load 20 t and maximum speed (empty / loaded) 120 / 100 km/h. It runs on Y25Ls(s)1-K bogies. Compliance: RID, UIC, EN, GCU, TSI; loading gauge GT-UIC 505-1.

Standards and approvals

RIDRegulations concerning the International Carriage of Dangerous Goods by Rail, Appendix C to COTIF.

UICTechnical leaflets of the International Union of Railways (UIC).

ENApplicable European (EN) standards for railway vehicles.

GCUGeneral Contract of Use for Wagons (GCU), the contract governing wagon use between keepers and railway undertakings in Europe.

TSITechnical Specifications for Interoperability (TSI) for operation on the European Union rail network.

Frequently asked questions

What is the Zaes 62 m³ used for?

For transporting crude oil and heavy petroleum products.

What is the payload of the Zaes 62 m³?

Capacity figures: capacity Min. 62 m³ and axle load 20 t.

Which bogie does the Zaes 62 m³ use?

Y25Ls(s)1-K bogies; brake system Knorr KE-GP-A 16″ BGS.

Which standards does the Zaes 62 m³ comply with?

RID, UIC, EN, GCU, TSI. Type approval and any additional requirements of the target network are confirmed at quotation stage.

How do I get a quote for the Zaes 62 m³?

The 7-step quote configurator on this site collects the model, quantity and delivery date; our engineering team then tailors the design to your project. You can also write directly to info@erciyasrail.com.
