Tank · Light

Zas 70 m³

Optimised for transporting light petroleum products.

A high-performance solution designed specifically for the safe and efficient transport of light petroleum products such as diesel and gasoline.

70 m³

22,5 t

TSI G1

Technical Specifications

Type

Zas

Compliance

TSI · UIC · EN

Gauge

TSI G1

Track gauge

1,435 mm

Capacity

70 m³

Max. payload

65 t

Tare weight

Approx. 25 t

Axle load

22.5 t

Length over buffers

14,540 mm

Distance between bogie pivots

9,500 mm

Max. speed (empty / loaded)

120 / 100 km/h

Tank type

Liquid petroleum

Tank working temperature

-20°C / +50°C

Design pressure

10 bar

Test pressure

4 bar

Max. working pressure

1 bar

Tank outside diameter

2,700 mm

Heating

Optional

Insulation

Optional

Min. curve radius

35 m

Bogie

Y25 Ls(s)d1

Bogie wheelbase

1,800 mm

Brake

SW-GP-A

Buffers

30 kJ · 105 mm stroke

Overview

The Zas 70 m³ is a tank wagon designed and built by Erciyas Rail in Türkiye. Key figures: capacity 70 m³, maximum payload 65 t, tare weight approx. 25 t, axle load 22.5 t, length over buffers 14,540 mm and maximum speed (empty / loaded) 120 / 100 km/h. It runs on Y25 Ls(s)d1 bogies. Compliance: TSI, UIC, EN; loading gauge TSI G1.

Standards and approvals

TSITechnical Specifications for Interoperability (TSI) for operation on the European Union rail network.

UICTechnical leaflets of the International Union of Railways (UIC).

ENApplicable European (EN) standards for railway vehicles.

Frequently asked questions

What is the Zas 70 m³ used for?

Optimised for transporting light petroleum products.

What is the payload of the Zas 70 m³?

Capacity figures: capacity 70 m³, maximum payload 65 t, tare weight approx. 25 t and axle load 22.5 t.

Which bogie does the Zas 70 m³ use?

Y25 Ls(s)d1 bogies; brake system SW-GP-A.

Which standards does the Zas 70 m³ comply with?

TSI, UIC, EN. Type approval and any additional requirements of the target network are confirmed at quotation stage.

How do I get a quote for the Zas 70 m³?

The 7-step quote configurator on this site collects the model, quantity and delivery date; our engineering team then tailors the design to your project. You can also write directly to info@erciyasrail.com.

From the field

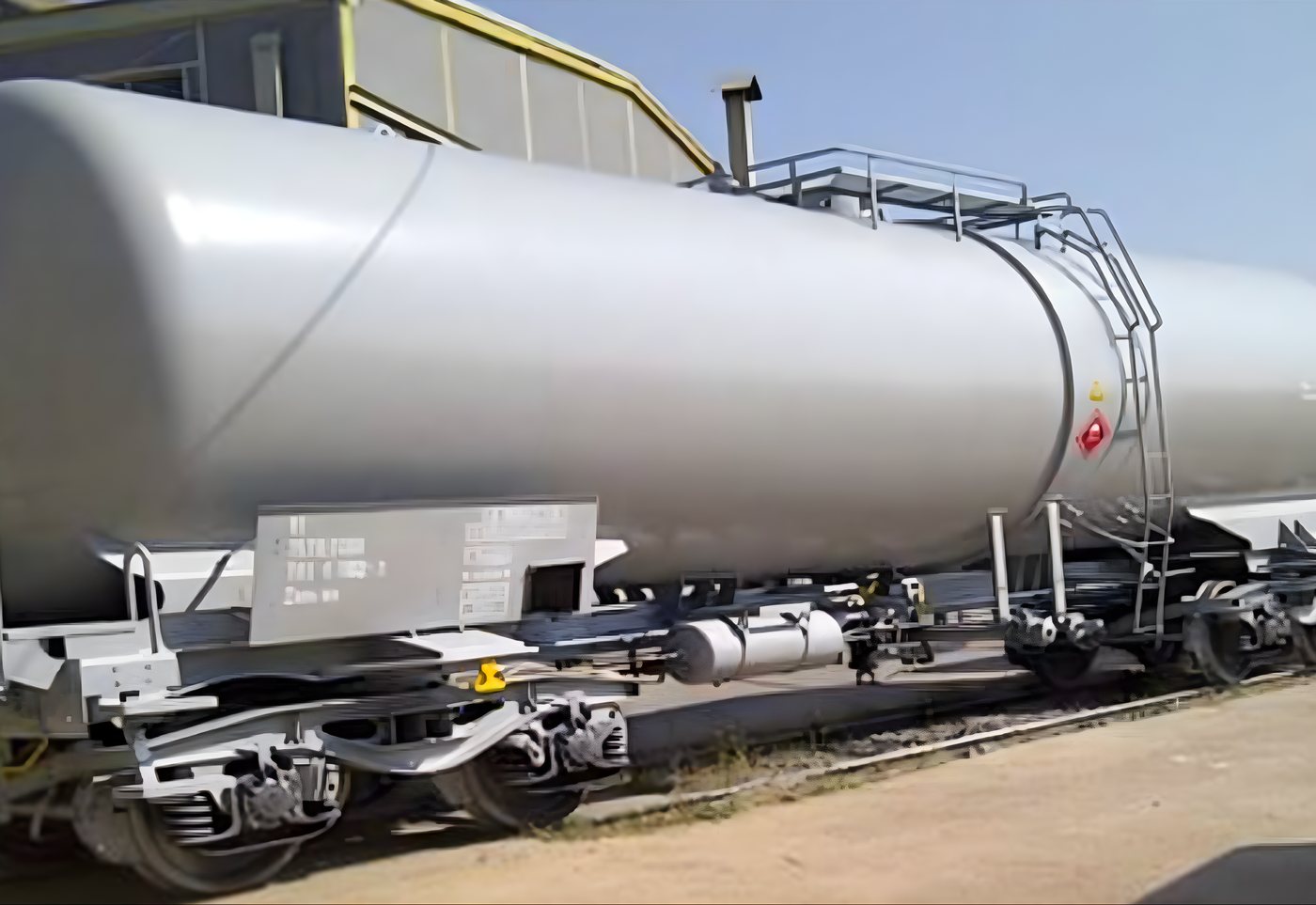

Real photographs from our production line and from vehicles in service.
